| FA-XIS5030A | FA-XIS5030C | FA-XIS5536 | FA-XIS6040 | FA-XIS6550 | |
| Tunnel Size | 505mm(Width)x307mm(Height) | 505mm(Width)x307mm(Height) | 555mm(Width)x365mm(Height) | 605mm(Width)x405mm(Height) | 655mm(Width)x505mm(Height) |
| Conveyor Speed | 0.20m/s | ||||
| Conveyor Height | 730mm | 730mm | 745.5mm | 645mm | 645mm |
| Max Load | 150kg(even distribution) | 150kg(even distribution) | 150kg(even distribution) | 160kg(even distribution) | 160kg(even distribution) |
| Wire Resolution | 40AWG (0.0787mm of wire)＞ 44SWG | ||||
| Spatial Resolution | HorizontalΦ1.0mm/ VerticalΦ1.0mm | ||||
| Steel Penetration | 10mm | 38mm | 38mm | 38mm | 38mm |

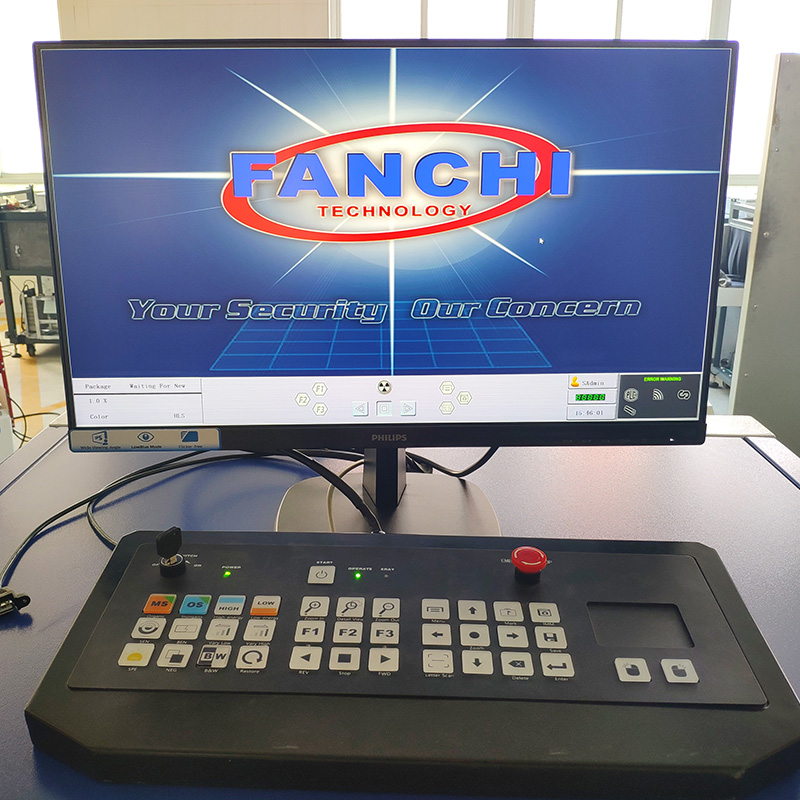

| Monitor | 17-inch color monitor，resolution of 1280*1024 | ||||
| Anode Voltage | 80Kv | 140-160Kv | 140-160Kv | 140-160Kv | 140-160Kv |
| Cooling/Run Cycle | Oil cooling /100% | ||||
| Per-inspection Dose | ＜1.0μG y | ＜1.0μG y | ＜1.0μG y | ＜1.0μG y | ＜1.0μG y |
| Image Resolution | Organics：Orange Inorganic：Blue Mixture and Light Metal：Green | ||||
| Selection and Enlargement | Arbitrary selection，1～32times enlargement, supporting continuous enlargement | ||||
| Image Playback | 50 checked images playback | ||||
| Storage Capacity | At least 100000 images | ||||
| Radiation Leaking Dose | Less than 1.0μGy /h（5cm away from shell ），Comply with all domestic and international health and radiation safety standards | ||||
| Film Safety | In full compliance with the ASA/ISO1600 film safe standard | ||||
| System Functions | High-density alarm，auxiliary examination of drugs and explosive，TIP（threat image projection）；date/time display，baggage counter，user management，system timing, ray-beam timing, power on self-test, image back-up and search，maintenance and diagnosis,，bi-directional scanning. | ||||
| Optional Functions | video monitoring system/ LED( liquid crystal display)/ energy -conservation and environmental-protection equipment / Electronic weighing system etc | ||||
| Overall Dimension | 1719mm(L)x761mm(W)x1183mm(H) | 1719mm(L)x761mm(W)x1183mm(H) | 1813mm(L)x855mm(W)x1270mm(H) | 1915mm(L)x865mm(W)x1210mm(H) | 2114mm(L)x955mm(W)x1310mm(H) |
| Weight | 500kg | 500kg | 550kg | 600kg | 600kg |
| Storage Temperature | -40℃±3℃~+60℃±2℃/5℃~95% （No condensation of moisture） | ||||
| Operation Temperature | 0℃±3℃~+40℃±2℃/5℃~95% （No condensation of moisture） | ||||
| Operation Voltage | AC220V(-15%~+10%) 50HZ±3HZ | ||||
| Consumption | 0.6KvA | ||||
